EBA Paper Shredder
 Made in Germany
EBA is the name for unmistakable distinction. For more than 90 years ( since 1922) EBA has provided the ultimate in shredders for individual comfort and security in the office. This is due to years of research and production quality, that justify the reputation for a work of German precision.
Except the models as below, we also supply the models which  are  more  powerful.
Quality management certified to ISO 9001:2000  》
EBA Shredder is a trust partner to Government , bank, educational instituations, commercial organization......

All the model get one year warranty under normal usage                           中文
Item No. / Product model / Picture Specification

Deskside Document Shredders

1.  EBA 1120S

1120S
DESKSIDE SHREDDER   EBA 1 1 2 0 S
The high-performance entry model: Compact and very robust.
  • high sheet capacity

  • multifunction switch for start,stop and reverse

  • transparent safety flap in the feed opening as an additional safety element to keep fingers, ties or other objects away from the cutting shafts

  • practical handle for lifting off the shredder unit from the shred bin

  • attractive shred bin (20 litres) from impact-resistant plastic

  • powerful, quiet single phase motor

  • double motor protection against overheating

  • sturdy steel cutting mechanism that swallows paper clips, staples

  • Colour: manhattan grey

  • quality << Made in Germany >>

Technical Data
Insertion Width in mm 220
Cutting Width in mm 4
Sheet capacity

A4 sheets-- 70gsm

11-13

A4 sheets-- 80gsm

9-11
DIN security level ( DIN 66399 ) P-2
Shred Speed ( cm/sec ) 6
Motor capacity in watts 150
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 345x 215 x 452
Volume of shred bin in litres 20
Weight in kgs 6.0 kg
Shreds Effortless visa card


2) EBA 1126
1126

DESKSIDE SHREDDERS  EBA 1 1 2 6 S, EBA 1 1 2 6 C



Easy-to use deskside shredder for environmentally conscious users.

EASY-Touch multifunction switch element for stand-by / stop (off) / reverse with integrated optical signals for the operational status of the shredder.

Photo cell controlled automatic start and stop. Automatic reverse and power cut-off.

ZERO ENERGY standby mode: complete, automatic disconnection from power supply after 30 minutes.

Transparent safety flap in the feed opening as additional safety element. Quiet, powerful and energy-efficient single phase motor. Double motor protection.

Highquality, paper clip proof cutting shafts from special hardened steel with lifetime guarantee.

Attractive shred bin from impact-resistant plastic.

Practical handle for lifting off the shredder unit from the bin. Magnetic switch for automatic stop if the shredder unit is removed from the shred bin (1126 C).

  • SOLID STEEL CUTTING SHAFTS Robust and durable: high-quality paper clip proof cutting shafts with lifetime guarantee under conditions of fair wear and tear.

  • SAFETY FLAP The safety flap in the feed opening is an additional safety element to keep fingers, ties or other objects away from the cutting shafts.

  • EASY-TOUCH MULTIFUNCTION SWITCH Easy operation is guaranteed with the EASYTouch multifunction switch for stand-by / stop (off) / reverse and optical signals for the operational status of the shredder

  • PRACTICAL HANDLE A practical handle is integrated into the design for lifting off the shredder unit from the shred bin when full.

  • << Made in Germany >>

  • Technical Data
      1126S 1126C 1126C
    Insertion Width in mm 220
    Cutting Width in mm 4 3x25 2x15
    Sheet capacity

    A4 sheets-- 70gsm

    11-13 6-7 4-5

    A4 sheets-- 80gsm

    9-11 5-6 3-4
    DIN security level  ( DIN 66399 ) P-2 P-4 P-5
    Shred Speed ( cm/sec ) 6
    Motor capacity in watts 150
    Power connection in volts / Hz 230/50
    Dimensions WxDxH in mm 345x 213 x 428
    Volume of shred bin in litres 20
    Weight in kgs 6.5 kg 7.5 kg 7.5kg
    Shreds Effortless visa card

3.)  EBA 1128
1128

DESK SIDE SHREDDERS

EBA 1 1 2 8 S EBA 1 1 2 8 C

  • Easy operation is guaranteed with the EASYTouch multifunction switch for stand-by / stop (off) / reverse and optical signals for the operational status of the shredder

  • The safety flap in the feed opening is an addi-tional safety element to keep fingers, ties or other objects away from the cutting shafts.

  • with large window showing fill level and magnetic swaitch for automatic stop if the full shred bin is removed ( cross cut )

  • Robust and durable: high-quality paper clip proof cutting shafts with lifetime guarantee under conditions of fair wear and tear.

  • << Made in Germany >>

Technical Data
  1128S 1128C 1128C
Insertion Width in mm 220 220
Cutting Width in mm 4 3x25 2x15
Sheet capacity

A4 sheets-- 70gsm

11-13 6-7 4-5

A4 sheets-- 80gsm

9-11 5-6 3-4
DIN security level  ( DIN 66399 ) P-2 P-4 P-5
Shred Speed ( cm/sec ) 6
Motor capacity in watts 150
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 345x 213x516
Volume of shred bin in litres 20
Weight in kgs 10.5 kg 11.5 kg 11.5kg
Shreds Effortless visa card

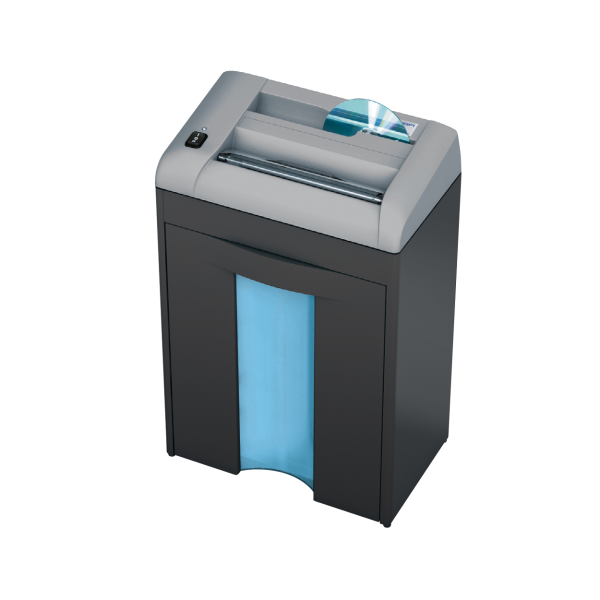

4.EBA  1125
1125S
1125C

DESKSIDE SHREDDERS

EBA 1125 S, EBA 1125 C

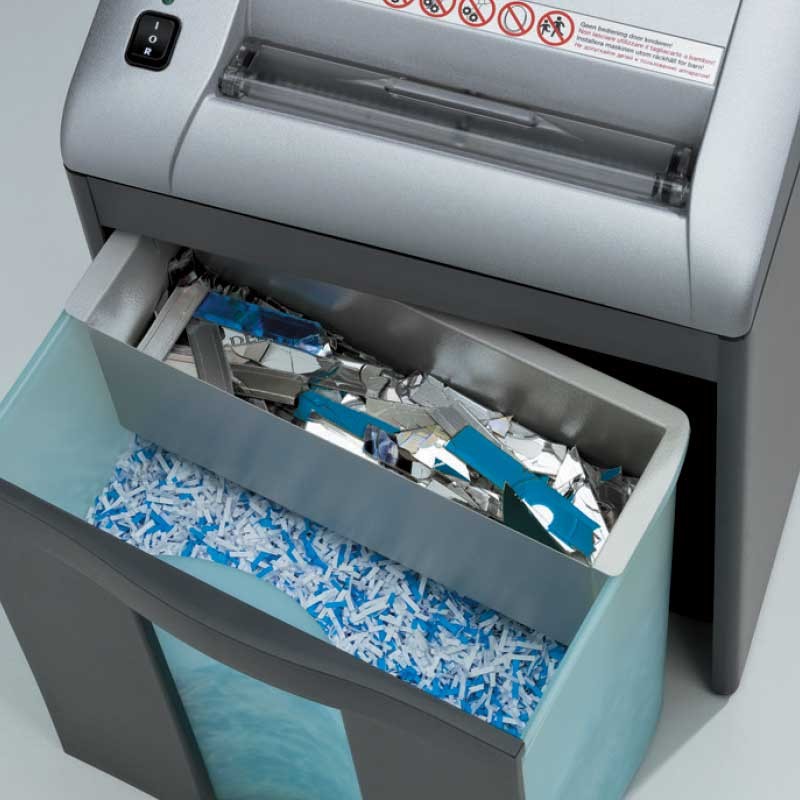

COMPACT DESKSIDE SHREDDERS WITH SECOND CUTTING HEAD FOR CDs AND DVDs

  • two separate feed openings and separate cutting heads for paper and CDs/DVDs

  • separate shred collection for easy waste separation

  • photo cell controlled automatic start and stop

  • multifunction switch for stand-by / stop (off) / reverse

  • pilot light

  • transparent safety flap in the feed opening as additional safety element

  • high quality paper clip proof cutting shafts from special hardened steel

  • quiet and powerful 150 Watt single phase motor

  • double motor protection

  • dust-proof gear box housing and durable gears

  • high-quality wooden cabinet

  • removable bin for paper shreds with large window showing fill level, made of an impact-resistant plastic material

  • separate colletion tray for CDs/DVDs or plastic credit cards

  • automatic power cut-off via a magnetic switch if the shred bin is removed from the cabinet

  • 20 litres volume for the paper shreds, the colletion tray for CDs/DVDs or plastic cards holds approx. 3 litres

  • quality << Made in Germany >>

Technical Data
  1125S 1125C
Insertion Width in mm 220 220
Cutting Width in mm 4 3x25
Sheet capacity

A4 sheets-- 70gsm

11-13 6-7

A4 sheets-- 80gsm

9-11 5-6
DIN security level  ( DIN 66399 ) P-2 P-4
Shred Speed ( cm/sec ) 6 6
Motor capacity in watts 150 150
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 345x 220x537
Volume of shred bin in litres 20
Weight in kgs 12.5 kg 13 kg
Shreds Effortless visa card, CD visa card, CD

5.  EBA 1624

1624

DESKSIDE SHREDDER

EBA 1624 S, EBA 1624C , EBA 1624CC, EBA 1624CCC

Excellent design, high performance, safe operation

  • convenient feed opening of 240 mm

  • < SPS> safety package (Safety Protection System):

    • electronically controlled safety flap in the feed opening as additional safety element

    • electronic door protection with magnetic switch

    • automatic reverse in case of paper jam with automatic cut-off

    •  automatic stop if the shred bag is full

    •  double motor protection against overheating

  • multifunction control element “EASY_SWITCH“ with integrated optical indicators for the operational status of the shredder

  • automatic start and stop via a photo cell

  • powerful, quiet 390 watt motor

  • fully enclosed, dust-proof gear box housing with durable gears

  • high-quality wooden cabinet, movable on swivel castors

  • environmentally-friendly permanent plastic bag

  • high shred bag capacity of 35 litres, convenient, environmentally-friendly shred bin

  • paper clip proof cutting mechanism made of highquality, tempered steel

  • attractive colour combination: silver / dark grey

  • quality << Made in Germany >>

Technical Data
  1624S 1624C 1624CC 1624CCC
Insertion Width in mm 240 240 240 240 240
Cutting Width in mm 4 4x40 2x15 0.8x12 0.8x5
Sheet capacity

A4 sheets-- 70gsm

19-21 13-15 10-12 4-6 4-5

A4 sheets-- 80gsm

16-18 11-13 8-10 3-5 3-4
DIN security level  ( DIN 66399 ) P-2 P-4 P-5 P-6 P-7
Shred Speed ( cm/sec ) 10 5 5 5 5
Motor capacity in watts 390
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 395x291x635
Volume of shred bin in litres 35
Weight in kgs 21 kg
Shreds Effortless visa card

6EBA  1824

1824

DESKSIDE SHREDDER

EBA 1824 S , EBA 1824 C

Powerful, easy-to-operate, safe -with large shred volume perfect for small work groups

  • high shred bag capacity of 50 litres

  • SPS- (Safety Protection System) package:

    • electronically controlled, transparent safety flap in the feed opening as additional safety element

    • automatic reverse and power cut-off (avoids paper jams)

    • automatic stop if the shred bin is full

    • electronic door protection via a magnetic proximity switch

    • double motor protection

    • energy saving mode

  • multifunction control element EASY_SWITCH with integrated optical indicators for the operational

  • status of the shredder

  • automatic start and stop via a photo cell

  • convenient feed opening of 240 mm

  • high sheet capacity (shreds up to 24 sheets at a time)

  • powerful, quiet 580 watt motor

  • fully enclosed, dust-proof gear box housing with durable gears

  • high-quality wooden cabinet, mobile on swivel castors

  • environmentally-friendly permanent plastic bag

  • paper clip proof cutting mechanism made of high-quality, tempered steel

  • suitable for safe shredding of CDs and DVDs (with 4 mm strip cut version)

  • attractive colour combination: silver / dark grey

  • quality << Made in Germany >>

Technical Data
  1824S 1824C
Insertion Width in mm 240
Cutting Width in mm 4 4x40 2x15
Sheet capacity

A4 sheets-- 70gsm

22-24 16-18 11-13

A4 sheets-- 80gsm

19-21 13-15 9-11
DIN security level  ( DIN 66399 ) P-2 P-4 P-5
Shred Speed ( cm/sec ) 10
Motor capacity in watts 580
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 395x291x635
Volume of shred bin in litres 35
Weight in kgs 22kg
Shreds Effortless visa card,CD visa card visa card

Office Shredders

7.  EBA  2127
2127

OF F I C E DOCUMENT SHREDDERS

EBA 2 1 2 7 S, EBA 2 1 2 7 C

Attractive design, easy-to-use, extremely safe operation –ideal for small work groups

  • large volume for the shreds (100 litres)

  • SPS- (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off (avoids paper jams)

    • - automatic stop if the shred bin is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy saving mode

  • multifunction control element EASY_SWITCH with integrated optical indicators for the operational

  • status of the shredder

  • automatic start and stop via a photo cell

  • 260 mm feed opening, suitable for convenient shredding of A4 continuous forms with tractor feed margins

  • quiet but powerful 580 Watt motor

  • high-quality wooden cabinet, mobile on castors

  • bag frame for mounting disposable shred bags

  • paper clip proof, solid cutting shafts from special hardened high-quality steel

  • suitable for safe shredding of CDs and DVDs ( 4 mm strip cut version)

  • shred speed 0.1 m/sec

  • attractive colour combination: silver / dark grey

  • quality  << Made in Germany >>

Technical Data
  2127S 2127C
Insertion Width in mm 260 260 260
Cutting Width in mm 4 4x40 2x15
Sheet capacity

A4 sheets-- 70gsm

21-23 16-18 10-12

A4 sheets-- 80gsm

18-20 13-15 8-10
DIN security level  ( DIN 66399 ) P-2 P-4 P-5
Shred Speed ( cm/sec ) 10 10 10
Motor capacity in watts 580 580 580
Power connection in volts / Hz 230/50 230/50 230/5
Dimensions WxDxH in mm 500x377x830
Volume of shred bin in litres 75 75 75
Weight in kgs 30 kg 30.5 kg 30.5 kg
Shreds Effortless visa card,CD visa card visa card

8.EBA  2326

2326

OFFICE DOCUMENT SHREDDERS

EBA 2 3 2 6 S / EBA 2 3 2 6 C

INNOVATIVE : CENTRALI ED OFFIC E SHREDDER -SUITABLE FOR CONT INUOUS OPERATION

  • SPS- (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off (avoids paper jams)

    • - automatic stop if the shred bin is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy saving mode

  • multifunction control element EASY_SWITCH with integrated optical indicators for the operational status of the shredder

  • automatic start and stop via a photo cell

  • ECC - Electronic Capacity Control – indication of the used sheet capacity during shredding process

  • convenient 260 mm feed opening

  • sturdy steel cutting mechanism that swallows paper clips

  • suitable for safe shredding of CDs or DVDs (with 4 mm strip cut version)

  • powerful 640-Watt-motor for continuous operation

  • sturdy ”Twin Drive System“ with dust-proof gear box housing

  • high-quality wooden cabinet, mobile on castors

  • convenient shred bin

  • approx. 100 litres volume for the shreds

  • attractive colour combination: silver / dark grey

  • quality << Made in Germany >>

Technical Data
  2326S 2326C 2326CC 2326CCC
Insertion Width in mm 260
Cutting Width in mm 4 4x40 2x15 0.8x12 0.8x5
Sheet capacity

A4 sheets-- 70gsm

30-32 25-27 15-17 8-10 5-7

A4 sheets-- 80gsm

26-28 21-23 13-15 6-8 4-6
DIN security level  ( DIN 66399 ) P-2 P-4 P-5 P-6 P-7
Shred Speed ( cm/sec ) 8
Motor capacity in watts 640
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 495x470x926
Volume of shred bin in litres 100
Weight in kgs 48kg
Shreds Effortless visa card,CD visa card visa card

9. EBA 2331
2331

OFFICE DOCUMENT SHREDDERS

EBA 2 3 3 1 S , EBA 2 3 3 1 C

  • Performance – volume – easy operation: for formats up to A3

  • SPS- (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off (avoids paper jams)

    • - automatic stop if the shred bin is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy saving mode

  • multifunction control element EASY_SWITCH with integrated optical indicators for the operational status of the shredder

  • automatic start and stop via a photo cell

  • ECC - Electronic Capacity Control – indication of the used sheet capacity during shredding process

  • 310 mm feed opening for A3 formats (lengthwise) or A4 (widthwise or lengthwise)

  • sturdy steel cutting mechanism that swallows paper clips

  • suitable for safe shredding of CDs or DVDs(with 4 mm strip cut version)

  • powerful 640-Watt-motor for continuous operation

  • sturdy ”Twin Drive System“ with dust-proof gear box housing

  • high-quality wooden cabinet, mobile on castors

  • convenient shred bin

  • approx. 120 litres volume for the shreds

  • attractive colour combination: silver / dark grey

  • quality << Made in Germany >>

Technical Data
  2331S 2331C
Insertion Width in mm 310 310 310
Cutting Width in mm 4 4x40 2x15
Sheet capacity

A4 sheets-- 70gsm

30-32 25-27 15-17

A4 sheets-- 80gsm

26-28 21-23 13-15
DIN security level  ( DIN 66399 ) P-2 P-4 P-5
Shred Speed ( cm/sec ) 8 8 8
Motor capacity in watts 640 640 640
Power connection in volts / Hz 230/50 230/50 230/5
Dimensions WxDxH in mm 538x470x930
Volume of shred bin in litres 120 120 120
Weight in kgs 52 kg 52 kg 52 kg
Shreds Effortless visa card,CD visa card visa card

10. EBA 2339
2339
  • Attractively priced shredder with 400 mm feed opening

  • large feed opening of 400 mm for convenient feeding of large paper formats

  • SPS (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off (avoids paper jams)

    • - automatic stop if the shred bin is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy saving mode

  • multifunction control element EASY_SWITCH with integrated optical indicators for the operational status of the shredder

  • automatic start and stop via a photo cell

  • powerful 640 watt motor for continuous operation

  • sturdy ”Twin Drive System“ with fully closed gear box housing

  • high-quality wooden cabinet, movable on castors

  • convenient shred bin from unbreakable plastic

  • approx. 165 litres volume for the shreds

  • sturdy steel cutting mechanism that swallows paper clips

  • 30 years guarantee on the solid steel shredding shafts

  • 6 mm strip cut  suitable for safe shredding of CDs and DVDs

  • attractive colour combination: silver / dark grey

  • quality ”Made in Germany“

Technical Data
  2339S 2339C
Insertion Width in mm 400 400 400
Cutting Width in mm 6 4x40 2x15
Sheet capacity

A4 sheets-- 70gsm

25-28 19-22 10-13

A4 sheets-- 80gsm

21-24 16-19 8-11
DIN security level  ( DIN 66399 ) P-2 P-4 P-5
Shred Speed ( cm/sec ) 8 8 8
Motor capacity in watts 640 640 640
Power connection in volts / Hz 230/50 230/50 230/5
Dimensions WxDxH in mm 640x590x970
Volume of shred bin in litres 165 165 165
Weight in kgs 79 kg 84 kg 84 kg
Shreds Effortless visa card,CD visa card visa card


11. EBA 3140  cross cut
3140

OF F I C E DOCUMENT AND EDP SHREDDERS

EBA 3 1 4 0 C

  • The ideal solution for high volumes of paper.

  • high sheet capacity and continuous operation due to powerful 1300 watt motor

  • especially attractive price-performance ratio

  • large feed opening of 400 mm for convenient feeding of large paper formats

  • SPS- (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off (avoids paper jams)

    • - automatic stop if the shred bin is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy saving mode

  • modern keypad with manual start/stop/reverse buttons and visual indicators for operational status

  • automatic start/stop photoelectric-beam control

  • sturdy base cabinet on castors

  • plastic bag suspension with pull-out mechanism on wheels for easy removal of the full bag (200 litres)

  • sturdy steel cutting mechanism that swallows paper clips

  • suitable for safe shredding of CDs and DVDs

  • attractive colour combination: silver / dark grey

  • quality << Made in Germany >>

  • Storage shelf ( extra cost )

Technical Data
  3140C
Insertion Width in mm 400 400
Cutting Width in mm 4x40 2x15
Sheet capacity

A4 sheets-- 70gsm

28-30 16-18

A4 sheets-- 80gsm

23-25 13-15
DIN security level  ( DIN 66399 ) P-4 P-5
Shred Speed ( cm/sec ) 10 10
Motor capacity in watts 1300 1300
Power connection in volts / Hz 230/50 230/5
Dimensions WxDxH in mm 640x590x970 640x590x970
Volume of shred bin in litres 165 165
Weight in kgs 87 kg 87 kg
Shreds Effortless visa card,CD visa card

12. EBA 5131 cross cut
5131

OF F I C E DOCUMENT SHREDDERS

EBA 5 1 3 1 C

INNOVATIVE HIGH CAPACITY OFFICE SHREDDERS WITH A3 FEED OPENING

  • SPS- (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off (avoids paper jams)

    • - automatic stop if the shred bin is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy saving mode

  • multifunction control element EASY_SWITCH with integrated optical indicators for the operational status of the shredder

  • automatic start and stop via a photo cell

  • ECC - Electronic Capacity Control – indication of the used sheet capacity during shredding process

  • automatic oil injection on the cutting shafts during shredding operation for constantly high shred performance

  • convenient 310 mm feed opening for A3 (lengthwise) or A4 (lengthwise and widthwise)

  • sturdy steel cutting mechanism that swallows paper clips

  • suitable for safe shredding of CDs or DVDs (EBA 5131 S and EBA 5131 C)

  • powerful 1600 watt motor for continuous operation

  • sturdy chain drive and dust-proof gear box housing

  • high-quality wooden cabinet, mobile on castors

  • plastic bag suspension with pull-out mechanism on wheels for easy removal of the full bag (180 litres volume for the shreds);

  • attractive colour combination: silver / dark grey

  • quality ”Made in Germany“

Technical Data
  5131C 5131CCC
Insertion Width in mm 310
Cutting Width in mm 4x40 2x15 0.8x5
Sheet capacity

A4 sheets-- 70gsm

40-45 25-30 11-12

A4 sheets-- 80gsm

34-39 21-26 9-10
DIN security level  ( DIN 66399 ) P-4 P-5 P-7
Shred Speed ( cm/sec ) 15
Motor capacity in watts 1600
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 548x590x1020
Volume of shred bin in litres 140
Weight in kgs 102 kg
Shreds Effortless visa card,CD visa card, CD

13. EBA 5141 cross cut
5141

OFFICE DOCUMENT AND EDP SHREDDERS

EBA 5141 C/ EBA 5141 CC

INNOVATIVE HIGH CAPACITY OFFICE SHREDDERS – HIGH PERFORMANCE AND LARGE VOLUME

  • < SPS>--  (Safety Protection System) package:

    • - electronically controlled, transparent safety flap in the feed opening as additional safety element

    • - automatic reverse and power cut-off in case of paper jam with automatic cut-off

    • - automatic stop if the shred bag is full

    • - electronic door protection via a magnetic proximity switch

    • - double motor protection

    • - energy-saving mode after 1 hour

  • modern keypad with manual start/stop/reverse buttons and optical indicators for the operational status of the shredder

  • powerful 1600 watt motor for continuous operation

  • large feed opening of 405 mm for convenient feeding of large paper formats

  • automatic start and stop via a photo cell

  • ”ECC - Electronic Capacity Control“ – indication of the used sheet capacity during shredding process

  • automatic oil injection on the cutting shafts during shredding operation for constantly high shred performance

  • high-quality wooden cabinet, mobile on castors

  • especially high volume for the shreds (approx. 225 litres)

  • plastic bag suspension with pull-out mechanism on wheels for easy removal of the full bag (models 5141 CC and 5141 CCC with shred container)

  • dust-proof gear box housing

  • sturdy steel cutting mechanism that swallows paper clips (exception: models EBA 5141 CC )

  • suitable for safe shredding of CDs or DVDs (EBA 5141 S and EBA 5141 C)

  • attractive colour combination: silver / dark grey

  • quality << Made in Germany >>

Technical Data
  5141C 5141C 5141CC 5141CCC
Insertion Width in mm 405
Cutting Width in mm 4x40 2x15 0.8x12 0.8x5
Sheet capacity

A4 sheets-- 70gsm

40-45 25-30 15-17 10-11

A4 sheets-- 80gsm

34-39 21-26 13-15 8-9
DIN security level  ( DIN 66399 ) P-4 P-5 P-6 P-7
Shred Speed ( cm/sec ) 15 15 17 22
Motor capacity in watts 1600
Power connection in volts / Hz 230/50
Dimensions WxDxH in mm 640 x 590 x 1010
Volume of shred bin in litres 165
Weight in kgs 115kg
Shreds Effortless visa card,CD visa card,CD

High- Capacity Shredders
14. EBA 5146C
 High-capacity shredder EBA 5146 C

HIGH- CAPACITY DOCUMENT SHREDDERS
EBA 5 1 4 6 C
Fits into the smallest space – thanks to total front access. With feeding hopper for crumpled paper.

  • automatic start/stop photoelectric-beam control and manual start/stop/reverse buttons in modern keypad

  • continuous operation button for material feed via hopper

  • attachable storage shelf for flat material feed via photoelectric-beam

  • modern keypad with visual indicators for operational status

  • automatic reverse in case of paper jam with automatic cut-off

  • automatic cut-off when hopper or door is opened

  • main switch and emergency cut-off switch

  • front door for easy removal of the full waste cart (230 litres)

  • automatic cut-off when waste cart is full

  • powerful three phase motor (2.2 kW)

  • thermal overload switch

  • high quality cutting-mechanism made of high-grade steel, unaffected by soft metal objects

  • suitable for safe shredding of CDs

  • mobile on castors

  • quality << Made in Germany >>

Technical Data
5146C
Insertion Width in mm 460 460
Cutting Width in mm 4 x 60 2 x 15
Sheet capacity

A4 sheets-- 70gsm

65-70 35-40

A4 sheets-- 80gsm

55-60 29-34
DIN security level  ( DIN 66399 ) P-3 P-5
Shred Speed ( cm/sec ) 20 20
Motor capacity in watts 2200 2200
Power connection in volts / Hz 400 / 50 / 3 400 / 50 /3
Dimensions WxDxH in mm 740x 765 x 1700
Volume of shred bin in litres 230 230
Weight in kgs 256 kg 256 kg
Shreds Effortless visa card,CDvisa card, Floopy diskettes

15. EBA 6040
 high-capacity shredder EBA 6040 S, EBA 6040 C - Indestructible all-steel construction.

HIGH- CAPAC I T Y DOCUMENT SHREDDERS
EBA 6 0 4 0 S, EBA 6 0 4 0 C
Indestructible all-steel construction.

  • clearly laid out operator panel with push buttons for start/stop/reverse

  • emergency cut-off switch, main switch, and safety lock with key

  • material feed via conveyor belt

  • generous work surface due to side tables (standard) which are removable for easy transport

  • high-powered three-phase motor

  • thermal overload switch

  • automatic cut-off in case of “paper jam”, “shred bag full” or “door open”

  • centralised oiler for convenient lubricating of the cutting head

  • high shredded paper volume (300 litres) with electrically protected door at rear of machine

  • plastic bag suspension with pull-out mechanism on wheels for easy removal of the full bag

  • easily movable on castors

  • low transport width of just 69 cm (without side tables)

  • high quality cutting-mechanism made of high-grade steel, unaffected by soft metal objects

  • suitable for safe shredding of CDs

  • quality "Made in Germany"

Technical Data
6040S 6040C
Insertion Width in mm 410 410
Cutting Width in mm 6 6 x 50
Sheet capacity

A4 sheets-- 70gsm

90-110 80-90

A4 sheets-- 80gsm

75-95 68-78
DIN security level  ( DIN 66399 ) P-2 P-3
Shred Speed ( cm/sec ) 30 26
Motor capacity in watts 4000 3000
Power connection in volts / Hz 400 / 50 / 3 400 / 50 /3
Dimensions WxDxH in mm 1240x 1700 x 1440
Volume of shred bin in litres 300 300
Weight in kgs 350 kg 350 kg
Shreds Effortless visa card,CD,visa card, Floopy diskettes


16. EBA 7050-2C
 high-capacity shredder EBA 7050-2 C

HIGH-CAPACITY DOCUMENT SHREDDER
EBA 7050-2 C

These powerful giants provide an impressive output capacity

  • large feeding table with conveyor belt

  • electrically secured, pivoting safety guard in the feeding area

  • easy-to-use control panel with push button for forward/stop/reverse

  • safety lock and key, main switch and emergency cut-off switch

  • robust cutting mechanism made of highgrade steel, unaffected by soft metal objects

  • “2-SPEED” – two automatic speed levels (automatic adaption of the shred speed to the paper quantity fed)

  • electronic control prevents overfeeding: automatic reverse and re-feeding in case of paper jam

  • automatic cut-off when shred bag is full and in case of paper jam

  • optical indicators for operational status of the shredder

  • centralised oiler for easy lubrication

  • closed shred compartment with electronically secured door on the rear side of the machine

  • shred trolley on swivel castors with plastic bag mounting frame and 300 litres capacity

  • powerful three phase motors with 9,0 kW

  • movable on castors

  • quality  << Made in Germany >>

Technical Data
  7050-2C 7050-3C
Insertion Width in mm 500
Cutting Width in mm 8x40-80 6x50
Sheet capacity

A4 sheets-- 70gsm

600-700 300-400

A4 sheets-- 80gsm

500-600 250-350
DIN security level  ( DIN 66399 ) P-2 P-3
Shred Speed ( cm/sec ) 23 / 12( 2 automatic speed levels )
Motor capacity in watts 9000
Power connection in volts / Hz 400 / 50 /3
Dimensions WxDxH in mm 1036 x 2170 x 1714
Volume of shred bin in litres 300
Weight in kgs 1130 kg
Shreds Effortless visa card,CD,visa card, Floopy diskettes, arch files

17. EBA  0201OMD

HIGH SECURITY OPTICAL
MEDIA SHREDDER
OMD

HIGH SECURITY OPTICAL MEDIA SHREDDER

EBA 0 2 0 1 OMD

Innovat i ve high per formance shredder for Opt ical Media espec ially designed for efficient destruction of CDs and DVDs

  • high-quality cutting head with 2.2 x 4 mm particle size for high security needs according to German BSI - TL 03420 and North American NSA/CSS 04-02 requirements (particle size <_ 10 mm2)

  • impressive shred speed guarantees high shred performance of up to 2,500 CDs or DVDs per hour (one by one feeding)

  • solid steel cutting shafts made of special hardened steel

  • suitable for all types of CDs and DVDs

  • SPS – (Safety Protection System) package:

    • electronically controlled safety flap in the feed opening with specially designed feed slot to accept optical media and to prevent ”fly back“

    • automatic reverse and power cut-off (to prevent jams)

    • automatic stop if the collection bin is full

    • electronic door protection via a magnetic proximity switch

    • double motor protection

    • energy saving mode

  • multifunction control element “EASY_SWITCH“ with integrated

  • optical indicators for the operational status of the shredder

  • automatic start and stop via a photo cell

  • ”ECC - Electronic Capacity Control“ – indication of the

  • used shred capacity during shredding process

  • automatic oil injection on the cutting shafts during

  • shredding operation for constantly high shred performance

  • powerful 1600 watt motor for continuous operation

  • sturdy chain drive and dust-proof gear box housing

  • high-quality wooden cabinet, mobile on castors

  • anti-static collection bin (100 litres volume)

  • made of an impact resistant plastic material

  • attractive colour combination: silver / dark grey

  • one year guarantee on all parts

  • quality <<Made in Germany>>

  • This machine is not suitable for shredding paper documents .

Technical Data
Insertion Width in mm 310 / 130
Cutting Width in mm 2.2 x 4mm
Capacity CDs/DVDs per hour approx 2500 pieces
Security standard  < = 10 mm²
Motor capacity in watts 1600
Power connection in volts / Hz 230 /50
Dimensions WxDxH in mm 548 x 590 x 1020
Volume of shred bin in litres 100
Weight in kgs 104

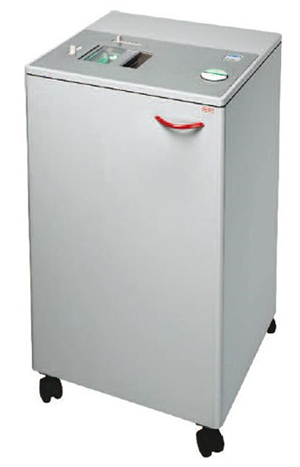

18. EBA 0101HDP
 Hard Drive Punch

0101HDP
EBA Hard Drive Punch

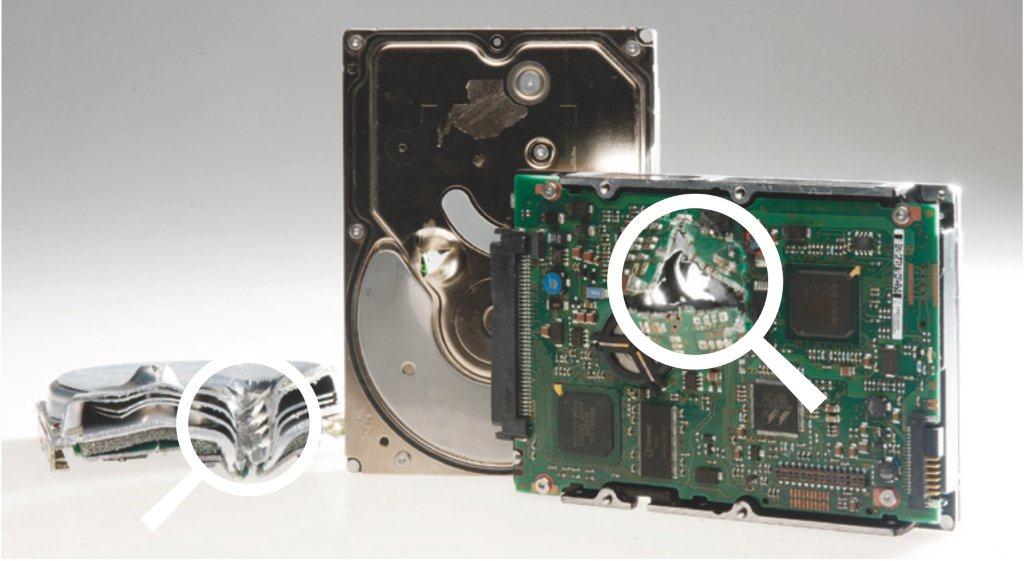

The perfect solution for rendering discarded hard drives from personal computers , notebooks , printers and copiers unusable.

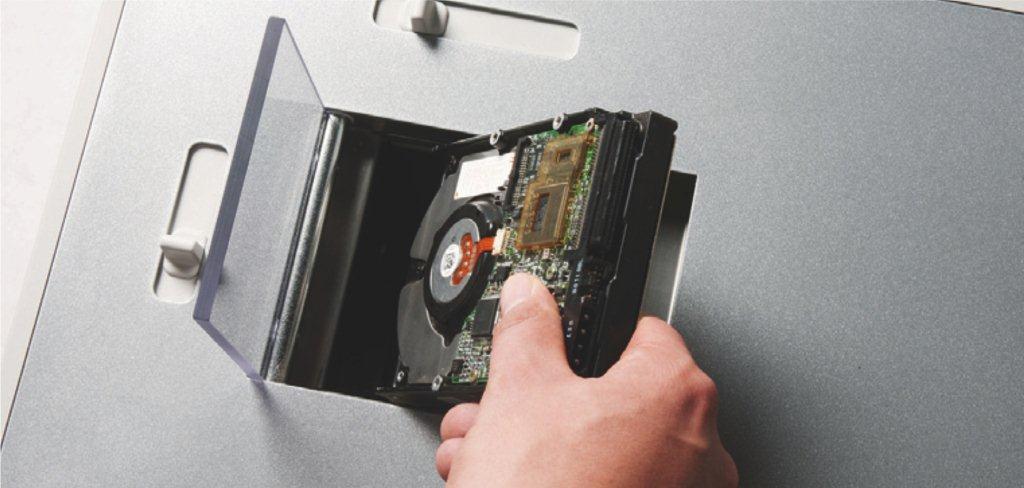

# suitable for 3.5“ or 2.5“ hard drives (single feeding)

# adjustable feed chute constructed of high quality steel

# handy slide lever for easy selection of hard drive size (3.5“ or 2.5“)

# transparent safety flap on the feed chute made of unbreakable plastic

# punching die made from hardened, nickelplated steel

# sturdy steel endplate

# LEDs for illuminating the feed chute during the punching process

# slider mechanism for unloading punching compartment

# destroyed hard drives drop into a sturdy plastic bin inside the cabinet

# high-quality wooden cabinet with front opening door

# SPS (Safety Protection System) safety package: electronically controlled,hinged safety flap for the feed opening; EASY_SWITCH multifunction control element for start and stop indicates the operational status of the machine with varying colour codes and back-lit symbols; jam protection

for punching die with automatic reverse; automatic stop after the punching process; weight sensor for automatic shut-off when the collection bin is full; electronic door protection via a magnetic proximity switch;double motor protection

# quiet and powerful 640 watt single phase motor rated for continuous operation

# sturdy ”Twin Drive System“ with fully enclosed gear box housing

# mobile on castors

# Punching cycle: 15 seconds


Technical Data
Insertion Width for 2.5" or 3.5" hard disk
Motor capacity in watts 640
Power connection in volts / Hz 230 /50
Dimensions WxDxH in mm 495 x 470 x850
Weight in kgs 63
  111
222
