日
本 Imada 推拉力計 / 扭力計
|
|
品牌
|
圖片
|
型號及特點
|
備註
|
|
1
|
IMADA
Digital Force Gauges
電子型推拉力計 |
|
產品名稱： 推拉力計
系列： Z2 / ZP
產 地： 日本
品 牌： IMADA
|
| 型
號: |
荷
載 / 最小讀值 |
| Z2-2N : |
2N ( 200 gf ) /
0.001N ( 0.1gf ) |
| Z2-5N : |
5N ( 500 gf ) /
0.001N ( 0.1 gf ) |
| Z2-20N : |
20N ( 2kgf ) / 0.01
N ( 1gf ) |
| Z2-50N : |
50 N ( 5 kgf ) /
0.01 N ( 1 gf ) |
| Z2-100N : |
100 N ( 10 kgf ) /
0.1 N ( 10gf ) |
| Z2-200N : |
200 N ( 20 kgf ) /
0.1 N ( 10gf ) |
| Z2-500N : |
500 N ( 50 kgf ) /
0.1 N ( 10gf ) |
| Z2-1000N : |
1000 N ( 100 kgf ) /
1 N (100 gf ) |
Z2系列 : RS-232 接口
ZP系列 : USB 接口
功能 :
- 可調整瞬間讀取值 ( +peak / -peak ) , 每秒4次至1000 次, 分成
0-6 共七個階段, 針對不同的測試方式選擇不同的瞬間讀取值, 特別針對破裂, 衝擊試驗
- kgf (gf ), N , lb (oz ) 三種計量單位互換
- 精度 : + / - 0.2 % FS
|
|
2.
|
IMADA

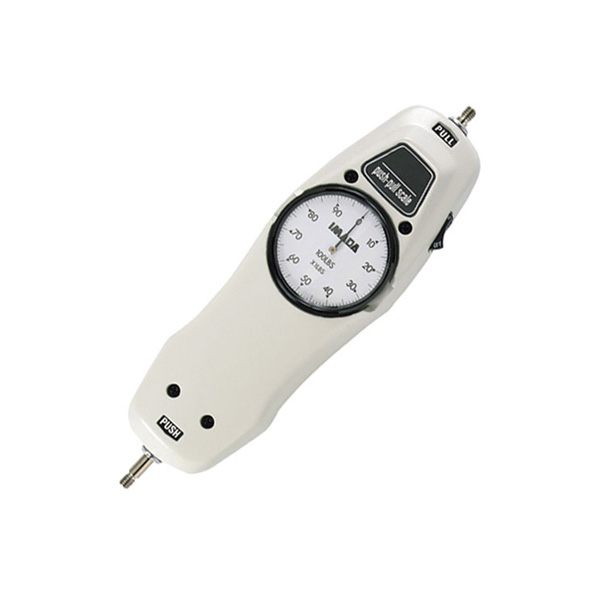

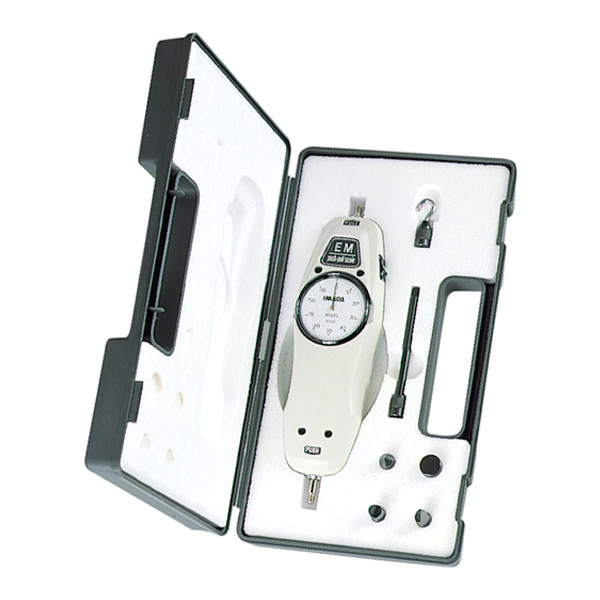

Mechanical Force Gauges
推拉力計機械型
|
|
產品名稱： 推拉力計

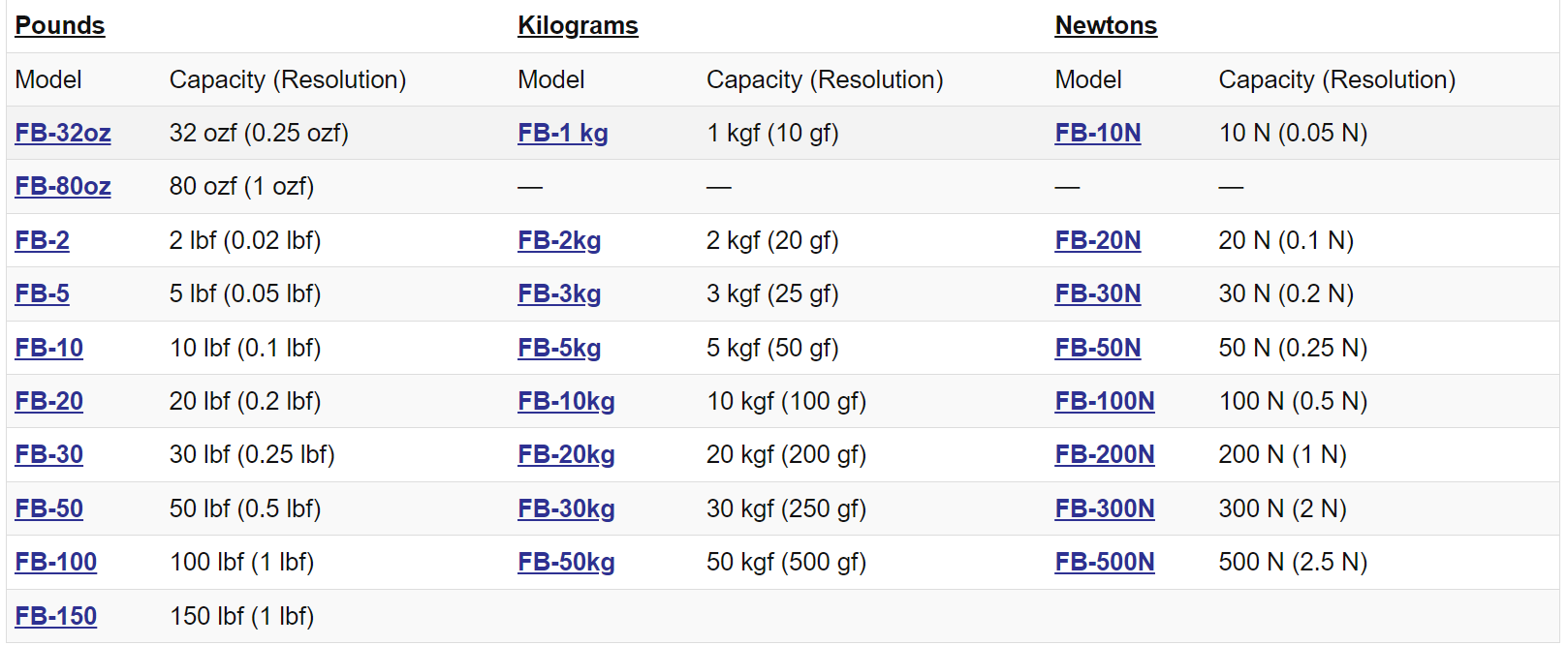

系列： FS / FB 系列普通型
產 地： 日本
品 牌： IMADA
|
型
號:
|
荷
載 / 最小讀值 |
| FS- 1K |
( 1kgf / 10gf ) |
| FS- 2K |
( 2kgf / 20 gf ) |
| FS -3K |
( 3kgf / 25 gf ) |
|
|
| FB - 5K |
( 5 kgf / 50 gf ) |
| FB - 10K |
( 10 kgf / 100 gf ) |
| FB - 20K |
( 20 kgf / 200 gf ) |
| FB - 30K |
( 30 kgf / 250 gf ) |
| FB - 50K |
( 50 kgf / 500 gf ) |
FB - 10N
|
( 10N / 0.1N ) |
| FB - 20N |
( 20N / 0.2N ) |
FB - 30N
|
( 30N / 0.25N ) |
FB - 50N
|
( 50N / 0.5N ) |
| FB -100N |
( 100N / 1N ) |
| FB -200N |
( 200N / 2N ) |
| FB -300N |
( 300N / 2.5 N ) |
FB-500N
|
( 500 N / 5N ) |
FB -5lb
|
(5lb / 0.05lb ) |
FB -10lb
|
(10lb / 0.1lb ) |
FB-20lb
|
(20 lb / 0.2 lb ) |
FB -30 lb
|
(30 lb / 0.25 lb ) |
| FB - 50 lb |
(50lb / 0.5lb ) |
FB -100 lb
|
(100 lb / 1 lb ) |
特點 :
- 精度 : + / - 0.3% FS
- 行程 : 10mm
- 刻度 : 一般為100 綫
- ( 3K, 30K , 30N, 300N, 30lb 為120綫 )
|
|
3.
|
IMADA
Torque Testers
扭力計 |
|
產品名稱： 扭力計
產品型號： HTG2
產 地： 日本
品 牌： IMADA
荷 載 : 2N-m
顯 示 : 2.000N-m
尚有其他型號: HTG2-5N, HTG2-10N, HTG2-200Nc, HTG2-500Nc, HTG2-1000Nc
|
HTG2 digital torque gauge offers programmable high/low
setpoints for go/no-go testing. ORANGE lights up for measurements less
than Low setpoint, GREEN for between High and Low setpoint, and RED for
over High setpoint.
Store up to 1,000 values in memory, which can be
displayed or transmitted using serial output. Use the real time mode to
display torque transients, or the peak mode to capture the peak torque
achieved during a test. Selectable measuring units of lbf-in, kgf-cm,
or N-cm.
HTG2 digital torque gauges are sold in kits which include
the gauge, sensor, six foot cable, and AC adapter/charger. Built-in
Ni-MH rechargeable
batteries.
HTG2 Digital Torque Gauge Ranges (Resolution)
Accuracy: ±0.5% F.S. ±1 LSD
|
Model
|
Capacity (Resolution)
|
| |
lbf-in
|
kgf-cm
|
N-cm
|
HTG2-4
|
70.00 ozf-in (0.01 ozf-in)
|
5.000 (0.001 kgf-cm)
|
50.00 (0.01 N-cm)
|
HTG2-15
|
15.00 (0.01 lbf-in)
|
20.00 (0.01 kgf-cm)
|
200.0 (0.1 N-cm)
|
HTG2-40
|
40.00 (0.01 lbf-in)
|
50.00 (0.01 kgf-cm)
|
500.0 (0.1 N-cm)
|
HTG2-85
|
85.0 (0.1 lbf-in)
|
100.0 (0.1 kgf-cm)
|
1000 (1 N-cm)
|
|
4.
|
IMADA
Cap Torque Testers
罐蓋扭力測試儀 |
 |
產品名稱： 罐蓋扭力測試儀
產品型號： DTX2-2N-A(B)
產 地： 日本
品 牌： IMADA
荷 載 : 2N-m
顯 示 : 2.000N-m
尚有其他型號: DTX2-5N-A(B), DTX2-10N-A(B), DTX2-200Nc-A(B),
DTX2-500Nc-A(B), DTX2-1000Nc-A(B)
|
Cap Torque
Tester
Series DTX2
- Programmable high/low setpoints with
color-coded LED indicators and output signal for quick go/no go testing
- 1,000 Data memory for computer download
- lbf-in, kgf-cm, and N-cm units are selectable
- RS-232C, Digimatic and Analog outputs
- Runs on internal Ni-MH batteries or AC adapter
- Both clockwise and counterclockwise operation
- Overload capacity 200% of F.S.
- Real time and peak mode (selectable)
- Overload indicator and output signal
- Low battery indicator
- Clamps containers from 1/2"~ 7" in diameter
|
|
Imada’s cap torque tester offers programmable
high/low setpoints for go/no-go testing. ORANGE lights up for
measurements less than Low setpoint, GREEN for between High and Low
setpoint, and RED for over High setpoint.
Store up to 1,000 values in memory, which can be
transmitted using the serial output. Use the real time mode to display
torque transients, or the peak mode to capture the peak torque achieved
during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.
DTX2 cap torque testers include AC adapter/charger
and built-in Ni-MH rechargeable batteries, 1" high standard pegs
(optional long pegs and calibration kit available).
DTX2 Cap Torque Tester Ranges (Resolution)
Accuracy: ±0.5% F.S. ±1 LSD
|
Model
|
Capacity (Resolution)
|
| |
lbf-in
|
kgf-cm
|
N-cm
|
DTX2-15
|
15.00 (0.01 lbf-in)
|
20.00 (0.01 kgf-cm)
|
200.0 (0.1 N-cm)
|
DTX2-40
|
40.00 (0.01 lbf-in)
|
50.00 (0.01 kgf-cm)
|
500.0 (0.1 N-cm)
|
DTX2-85
|
85.0 (0.1 lbf-in)
|
100.0 (0.1 kgf-cm)
|
1000 (1 N-cm)
|
|
|
|
|
