品牌 / 型號
|
圖片 |
型
號及特點 |
備註 |
|
1
|
Asker Durometer Type A
日本制
橡膠硬度計
型號 : A
|
|
The Type A Durometer for general rubber (Normal
hardness )
The mainstream product used world-wide for measuring various kinds of
rubbers, and specified in the standards of JIS K 6253, ASTM D 2240, ISO
7619, DIN53505, etc.
Height: 2.50mm Shape: Flat Cone Point |
一般橡膠
錐形測頭
|
|
2
|
Asker Durometer Type AL
日本制
橡膠硬度計
型號 : AL
|
|
The Type A Durometer for general rubber (Normal
hardness )
The mainstream product used world-wide for measuring various kinds of
rubbers, and specified in the standards of JIS K 6253, ASTM D 2240, ISO
7619, DIN53505, etc.
Height: 2.50mm Shape: Flat Cone Point |
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
3
|
Asker Durometer Type D
日本制
橡膠硬度計
型號 : D
|
|
The Type D Durometer for hard rubber (high hardness)
and plastics
Used world-wide for measuring hard rubbers and plastics, and specified
in the standards of JIS K 6253, ASTM D 2240, ISO 7619, DIN53505, etc.
Height: 2.50mm Shape: Sharp Cone Point
|
硬橡膠, 硬塑料
針形測頭
|
|
4
|
Asker Durometer Type DL
日本制
橡膠硬度計
型號 : DL
|
|
The Type D Durometer for hard rubber (high hardness)
and plastics
Used world-wide for measuring hard rubbers and plastics, and specified
in the standards of JIS K 6253, ASTM D 2240, ISO 7619, DIN53505, etc.
Height: 2.50mm Shape: Sharp Cone Point
|
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
5
|
Asker Durometer Type C
日本制
橡膠硬度計
型號 : C
|
|
The ASKER Durometer Type C, produced since 1956, is
our original brand durometer, and is a de facto standard in the world
for the measurement of soft rubber, sponges, etc.
Widely used for measuring soft rubber, sponges, and other foam
elastomers, as well as rolled-threads, -films and textile windings
(yarn packages).
Height: 2.54mm Shape: Spherical
|
海棉, 軟橡膠, 瓷土,
硬發泡橡膠, 繞綫盤
半球型測頭
|
|
6
|
Asker Durometer Type C1L
日本制
橡膠硬度計
型號 : C1L
|
|
The ASKER Durometer Type C, produced since 1956, is
our original brand durometer, and is a de facto standard in the world
for the measurement of soft rubber, sponges, etc.
Widely used for measuring soft rubber, sponges, and other foam
elastomers, as well as rolled-threads, -films and textile windings
(yarn packages).
Height: 2.54mm Shape: Spherical
|
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
7
|
Asker Durometer Type E
日本制
橡膠硬度計
型號 : E
|
|
The ASKER Durometer Type E for soft rubber (low
hardness), as specified by JIS K 6253 and ISO 7619.
The application is the same as the standard ASKER Durometer Type C
Widely used for measuring soft rubber, sponges, and other foam
elastomers, as well as rolled-threads, -films and textile windings
(yarn packages).
Height: 2.50mm Shape: Spherical
|
半球型測頭 |
|
8
|
Asker Durometer Type EL
日本制
橡膠硬度計
型號 : EL
|
|
The ASKER Durometer Type E for soft rubber (low
hardness), as specified by JIS K 6253 and ISO 7619.
The application is the same as the standard ASKER Durometer Type C
Widely used for measuring soft rubber, sponges, and other foam
elastomers, as well as rolled-threads, -films and textile windings
(yarn packages).
Height: 2.50mm Shape: Spherical
|
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
9
|
Asker Durometer Type C2
日本制
橡膠硬度計
型號 : C2
|
|
The ASKER Durometer Type C2 for soft rubber, sponges,
and other foam elastomers, as well as rolled-threads (yarn packages),
etc. It is suitable for soft materials difficult to measure using the
ASKER Type C.
Height: 2.54mm Shape: Spherical
|
軟海棉 ( 一般用於比 C
型軟的材料 )
半球型測頭
|
|
10
|
Asker Durometer Type C2L
日本制
橡膠硬度計
型號 : C2L
|
|
The ASKER Durometer Type C2 for soft rubber, sponges,
and other foam elastomers, as well as rolled-threads (yarn packages),
etc. It is suitable for soft materials difficult to measure using the
ASKER Type C
Height: 2.54mm Shape: Spherical |
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
11
|
Asker Durometer Type F
日本制
橡膠硬度計
型號 : F
|
|
The ASKER Durometer Type F for much softer specimens
(low hardness) gives accurate readings as it features a larger indentor
and pressure foot.
The durometer exclusively for various foam materials such as urethane
foam, sponge, etc.
There is no need to press the durometer into the specimen, but just to
place it onto the specimen. As it is soft, the weight of the durometer
constitutes the pressure to the specimen.
Height: 2.54mm
Shape: Cylindrical
|
軟發泡塑料, 發泡橡膠
盤形測頭
|
|
12
|
Asker Durometer Type FP
日本制
橡膠硬度計
型號 : FP
|
|
The ASKER Durometer Type F for much softer specimens
(low hardness) gives accurate readings as it features a larger indentor
and pressure foot.
Pressure foot plate is designed to be smaller in dimensions and an oval
shape in accordance with the size of powder puff.
The ASKER Durometer Type F is specified exclusively
for powder puff.
There is no need to press the durometer into the specimen, but just to
place it onto the specimen. As it is soft, the weight of the durometer
constitutes the pressure to the specimen.
It has recently been used additionally for gel materials, soft rubber
rolls, etc.
Height: 2.54mm
Shape: Cylindrical
|
化妝用粉扑
盤形測頭
|
|
13
|
Asker Durometer Type CS
日本制
橡膠硬度計
型號 : CS
|
|
The ASKER Durometer Type CS is designed to decrease
false readings of measurements for polystyrene foam by simultaneously
deforming multiple granular foams.
The larger indentor and stronger spring than those of the ASKER Type C
enable the stable measurement of large-sized granular particles such as
polystyrene foam.
Height: 2.54mm Shape: Cylindrical
|
苯己烯發泡
盤形測頭
|
|
14
|
Asker Durometer Type B
日本制
橡膠硬度計
型號 : B
|
|
The ASKER Durometer Type B for semi-rigid rubber (from
normal hardness to high hardness), as specified by ASTM D2240
It is used for measuring harder specimens, such as earthenware clay or
mossed pottery, than the Type A durometer, because the indentor is
spring-loaded as in the ASKER Type A, but is a conical shape as in the
ASKER Type D.
Height: 2.50mm Shape: Sharp Cone Point
|
半硬橡膠, 瓷土,
針形測頭
|
|
15
|
Asker Durometer Type BL
日本制
橡膠硬度計
型號 : BL
|
|
The ASKER Durometer Type B for semi-rigid rubber (from
normal hardness to high hardness), as specified by ASTM D2240
It is used for measuring harder specimens, such as earthenware clay or
mossed pottery, than the Type A durometer, because the indentor is
spring-loaded as in the ASKER Type A, but is a conical shape as in the
ASKER Type D.
Height: 2.50mm Shape: Sharp Cone Point
|
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
16
|
Asker Durometer Type JA
日本制
橡膠硬度計
型號 : JA
|
|
The ASKER Durometer Type JA for general rubber,
conforming to the specifications of the former JIS K 6301.
It complied with Spring type hardness tester Type A in the formerly
applicable standards of JIS J6301"Physical Testing Methods for
Vulcanized Rubber", abolished in Aug, 1998. However, it is used even
now for measurement data or internal management data upon the agreement
of concerned parties due to its extensive use historically within the
rubber industry.
Height: 2.54mm Shape: Flat Cone Point
|
一般橡膠
|
|
17
|
Asker Durometer Type JAL
日本制
橡膠硬度計
型號 : JAL
|
|
The ASKER Durometer Type JA for general rubber,
conforming to the specifications of the former JIS K 6301.
It complied with Spring type hardness tester Type A in the formerly
applicable standards of JIS J6301"Physical Testing Methods for
Vulcanized Rubber", abolished in Aug, 1998. However, it is used even
now for measurement data or internal management data upon the agreement
of concerned parties due to its extensive use historically within the
rubber industry
Height: 2.54mm Shape: Flat Cone Point
|
長壓腳型:
可測量狹小物體及凹進平面部份
|
|
18
|
Asker Durometer Type JC
日本制
橡膠硬度計
型號 : JC
|
|
The ASKER Durometer Type JC for general rubber,
thermoplastic elastomers and soft plastic conforming to the
specifications of the former JIS K 6301.
It complied with Spring type hardness
tester
Type C in the formerly applicable standards of JIS J6301 "Physical
Testing Methods for Vulcanized Rubber" , abolished in Aug, 1998.
However, it is used even now for measurement data or internal
management data upon the agreement of concerned parties due to its
extensive use for many years within the rubber industry.
Height: 2.54mm Shape: Flat Cone Point
|
半硬橡膠, 軟塑料
錐形測頭
|
|
19
|
Asker
Digital Durometer Type DD2-A
日本制
電子式
橡膠硬度計
型號 : DD2-A
|
|
Type A durometer for general rubbers (rubbers in the
normal hardness range)
A mainstream type for hardness measurement of various rubber products,
conforming to JIS K 6253, ASTM D 2240, ISO 7619, DIN53505, and other
national and international standards.
2.50mm high, Truncated-cone-shaped indentor
|
一般橡膠
圓台形測頭
|
|
20
|
Asker
Digital Durometer Type DD2-D
日本制
電子式
橡膠硬度計
型號 : DD2-D
|
|
Type D durometer for hard rubber (rubbers in the high
hardness range) and plastics
Conforming to JIS K 6253, ASTM D 2240, ISO 7619, DIN53505, and other
national and international standards. Used for measuring hard rubbers
and plastics
 2.50mm high, Cone-shaped indentor
|
硬膠
錐形測頭
|
|
21
|
Asker
Digital Durometer Type DD2-C
日本制
電子式
橡膠硬度計
型號 : DD2-C
|
|
ASKER C Type, our original durometer from 1956, is the
world de facto standard type for the measurement of soft rubbers and
sponge rubbers.
A hardness tester widely used for measuring the hardness of soft
rubbers, sponges, foam elastomers, yarn windings (yarn package), rolled
films or textiles, etc
 2.54mm high, Spherical-shaped
indentor
|
軟質
半球型測頭
|
|
22
|
Asker
Digital Durometer Type DD2-E
日本制
電子式
橡膠硬度計
型號 : DD2-E
|
|
Type E durometer for soft rubbers (rubbers in the low
hardness range) specified by JIS K 6253 and ISO 7619 standards to be
used in a similar manner as the conventional ASKER type C.
A hardness tester widely used for measuring the hardness of soft
rubbers, sponges, foam elastomers, yarn windings (yarn package), rolled
films or textiles, etc.
 2.50mm high, Spherical-shaped
indentor |
軟膠
半球型測頭
|
|
23
|
Asker
Digital Durometer Type DD2-C2
日本制
電子式
橡膠硬度計
型號 : DD2-C2
|
|
A durometer for measuring the hardness of soft
rubbers, sponges, foam elastomers, yarn windings (packages), etc.
Suitable for materials that are too soft to measure with the ASKER type
C.
 2.54mm high,
Spherical-shaped indentor |
軟膠 / 海棉
半球型測頭
|
|
24
|
Asker
Digital Durometer Type DD2-JA
日本制
電子式
橡膠硬度計
型號 : DD2-JA
|
|
Conforming to former JIS K 6301 standards, ASKER JA
type is for general rubbers.
Conforms to the type A spring durometer specified in the JIS K 6301
standard "Physical Testing of Vulcanized Rubber," abolished in August
1998. Because the use of this standard was so widespread in the rubber
industry for such a long time, this type is still used today for
collecting measurement data or for internal purposes with the consent
of involved parties
2.54mm high, Truncated-cone-shaped indentor
|
一般
圓台形測頭
|
|
e_Asker
|
|
25
|
e-Asker Durometer Type A , JA, C,
D
日本制
橡膠硬度計
型號 : A, JA, C, D
|
|

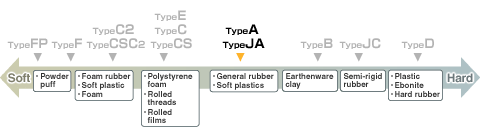

One
of the most important steps in using a durometer (rubber hardness
tester) is to select the optimum type.
There are various types of durometer available based on different
standards applied to a wide variety of subjects to be measured.
Among them the most popular models for rubber materials are ISO 7619
& ASTM D 2240-specified Type A
Durometer (ASKER Model A) and JIS K 6301 (abolished)-specified Type A
Durometer (ASKER Model JA).
Other typical models include ISO 7619 & ASTM D 2240-specified Type D Durometer (ASKER Model D)
for hard rubber and plastics,
and ASKER-C (ASKER Model C)
for soft rubber or flexible cellular materials.
|
|
|
|
|
Cone point type.
Model D has this type.
Measuring Objects:
Hard rubber and plastics.
|
|
|
|
 |
·
Flat point type.
Model A and JA have this type.
Measuring Objects:
General rubber.
|
|
|
|
|
Hemispherical point featuring larger contact area.
ASKER C has this type.
Measuring Objects:
Soft rubber and sponge rubber.
|
|
|
