日本 Peacock 千分錶 / 百分錶

品牌
 圖片
 型號及特點 /備註

1.
 Peacock
Dial Gauge

0.001mm


Model 5B
Graduation 0.001mm
Range 1mm
  • Lug back

 5b
Specifications  技術規格
Model 準確度Graduation
(mm)		 測量範圍Range
(mm)		 Reading Indication error (µm) Backward
error
(µm)		 Repeatability
(µm)		 Measuring
force less
than (N)
Revolution Whole
measuring
range
1/10 1/2 One Two
5B-HG 0.001 1
 0 - 100 - 0 2 ±2 ±3 ±3 ±3 2 0.5 1.5
5B 0.001 1 0 - 100 - 0 2.5 ±3 ±4 ±4 ±5 3 0.5 1.5
5F 0.001 1 0 - 100 - 0 2.5 ±3 ±4 ±4 ±5 3 0.5 1.5
5-DX 0.001 1 0 - 100 - 0 2.5 ±3 ±4 ±4 ±5 3 0.5 1.5
5-SWF 0.001 1 0 - 100 - 0 2.5 ±3 ±4 ±4 ±5 3 0.5 1.5
25 0.001 2 ±0 - 100 - 0 4 ±5 ±6 ±6 ±7 3 0.5 1.5
25S 0.001 2 0 - 100 - 0 4 ±5 ±6 ±6 ±7 3 0.5 1.5
25F-RE 0.001 2 ±0 - 100 - 0 4 ±5 ±6 ±6 ±7 3 0.5 1.5
55 0.001 5 0 - 100 - 0 5 ±6 ±7 ±8 ±10 4 1 1.5
55-DX 0.001 5 0 - 100 - 0 5 ±6 ±7 ±8 ±10 4 1 1.5
56 0.005 5 0 - 25 - 50 6 ±10 ±10 ±12 ±12 5 5 1.5


Dimensions (mm)
Model A B C D E F G H I J
5B-HG 60 41.5 18.5 53 14.5 20 4 6.5 49 8.0
5-DX 60 42.6 17 55.7 14.5 20 5 7 52 8.0
5B 60 41.5 18.5 53 14.5 20 4 6.5 49 8.0
5F 60 41.5 18.5 53 14.5 -- 4 6.5 49 8.0
5-SWF 63 41.5 17.5 55 15 20 4 6.5 49 8.0
25 72 42 25 66.5 14.5 20 4 7.5 62.5 8.0
25F-RE 72 41 25 66.5 14.5 -- 4 7.5 62.5 8.0
25S 60 42.6 17 55.7 14.5 20 5 7 52 8.0
55 73 52 25 66 17 20 4.5 7 62.5 8.0
55-DX 62 44.5 17 57 17 19.5 4.5 6.5 52 8.0
56 62 44.5 17 57 17 19.5 4.5 6.5 52 8.0


2

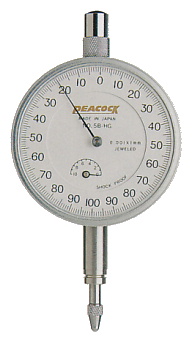

Model 5B-HG
High Precision Type
Graduation 0.001mm
Range 1mm
  • Indication error ±3µm
  • Retrace error 2µm
  • Includes accuracy certification
  • Lug back
 5B-HG
3
Model 5-SWF
Graduation 0.001mm
Range 1mm
  • Oil-proof type
  • Contact point ( X-2A )
  • Lug back
 5-SWF
4
Model 25
Graduation 0.001mm
Range 2mm
  • Lug back
 25
 size
5.
Model 25F-RE
Graduation 0.001mm
Range 2mm
  • Equipped spindle pull-up release ( RE-2 )
  • Flat back
 25F-RE
6.
Model 55
Graduation 0.001mm
Range 5mm
  • Lug back
 55

7.
Model 107
Graduation 0.01mm
Range 10mm
  • Lug back
 107
Specifications
Model Graduation
(mm)		 Range
(mm)		 Reading Indication error (µm) Backward
error
(µm)		 Repeatability
(µm)		 Measuring
force less
than (N)
Revolution Whole
measuring
range
1/10 1/2 One Two
107-HG 0.01 10 ±0 -50- 100 6 ±7 ±8 ±10 ±10 4 5 1.4
107-DX 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107F 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107-SWA 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107-BL 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107-LL 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107F-RE 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
107F-T 0.01 10 ±100 -50- 0 8 ±9 ±10 ±15 ±15 5 5 1.4
107-E 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 * 0.4
17 0.01 1 0 -50- 0 8 ±9 ±10 -- -- 5 5 1.4
107W 0.01 10 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
57-SWA 0.01 5 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
57 0.01 5 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
57F 0.01 5 ±0 -50- 100 8 ±9 ±10 ±15 ±15 5 5 1.4
57B 0.01 5 0 -50- 0 8 ±9 ±10 ±15 ±15 5 5 1.4
* initial pressure 0.4N

Dimensions (mm)
Model A B C D E F G H I J
107-HG 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0
107-DX 65 50.7 17 55.7 14.5 20 5 7 52 8.0
107 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0
107F 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0
107-SWA 68 41.5 17.5 55 15 20 4 6.5 49 8.0
107-BL 65 41.5 18.5 53 14.5
4 6.5 49 8.0
107F-RE 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0
107-LL 65 -- 18.5 53 14.5 20 4 6.5 49 8.0
107W 65 41.5 17.5 55 17 20 4 6.5 49 8.0
107F-T 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0
107-E 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0
17 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0
57-SWA 65 41.5 18.5 55 15 20 4 6.5 49 8.0
57 65 41.5 18.5 53 14.5 20 4 6.5 49 8.0
57F 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0
57B 65 41.5 18.5 53 14.5 -- 4 6.5 49 8.0


8
Model 107-DX
Graduation 0.01mm
Range 10mm
  • Durable type ( Spindle Ø5mm )
  • Lug back
 107dx
9
Model 107-SWA
Graduation 0.01mm
Range 10mm
  • Oil-proof type
  • Flat crystal
  • Contact point ( X-2A )
  • Lug back
 107swa
10
Model 107-HG
High Precision Type
Graduation 0.01mm
Range 10mm
  • Indication error ±10µm
  • Retrace error 4µm
  • Includes accuracy certification
  • Lug back
 107hg
11.
Model 107W
Graduation 0.01mm
Range 10mm
  • Tow center pointers
(The hand is long enough to  facilitate easy reading of measured values.)
  • Lug back
 107W
12.
Model 107F-T
Graduation 0.01mm
Range 10mm
  • Reversed dial
  • Flat back

 107ft
13.
Model 107-E
Graduation 0.01mm
Range 10mm
  • Low-measuring force
  • initial pressure 0.4N
  • Lug back

 107e
14
Model 57
Graduation 0.01mm
Range 5mm
  • Lug back
 57
15
Model 57-SWA
Graduation 0.01mm
Range 5mm
  • Oil-proof type
  • Flat crystal
  • Contact point ( X-2 )
  • Lug back
 57swa

16
Model 207
Graduation 0.01mm
Range 20mm
  • Lug back
 207
Specifications
Model Graduation
(mm)		 Range
(mm)		 Reading Indication error (µm) Backward
error
(µm)		 Repeatability
(µm)		 Measuring
force less
than (N)
Revolution Whole
measuring
range
1/10 1/2 One Two
207 0.01 20 ±0 -50- 100 10 -- ±15 -- ±20 7 5 2.0
207F-T 0.01 20 ±100 -50- 0 10 -- ±15 -- ±20 7 5 2.0
207S 0.01 20 ±0 -50- 100 10 -- ±15 -- ±20 7 5 2.0
207W 0.01 20 ±0 -50- 100 10 -- ±15 -- ±20 7 5 2.0
307S 0.01 30 ±0 -50- 100 14 -- ±18 -- ±25 7 5 2.2
307 0.01 30 ±0 -50- 100 14 -- ±18 -- ±25 7 5 2.2
507 0.01 50 ±0 -50- 100 15 -- ±20 -- ±35 9 5 2.5

17
Model 207F-T
Graduation 0.01mm
Range 20mm
  • Reversed dial
  • Flat back
 207FT
18
Model 207S
Graduation 0.01mm
Range 20mm
  • Small dial face type ( Ø53mm )
  • Lug back
 207S
19
Model 207W
Graduation 0.01mm
Range 20mm
  • Tow center pointers
  •   (The hand is long enough to  facilitate easy reading of  measured values.)
  • Lug back
 207W
20
Model 307
Graduation 0.01mm
Range 30mm
  • Lug back

 307
21
Model 307S
Graduation 0.01mm
Range 30mm
  • Small dial face type ( Ø57mm )
  • Contact point ( X-2 )
  • Lug back
 307S
22.
Model 507
Graduation 0.01mm
Range 50mm
  • Lug back
 507
